1. Download the RLM Server Software and the Lauterbach ISV server settings file
Reprise Software Inc. - RLM License Administration Bundle Downloads
Download Lauterbach ISV server settings file (SHA1=e20a33b749d22d49e3441358bc208906f17d95eb)
2. Install the RLM Server Software on your RLM License Server Machine

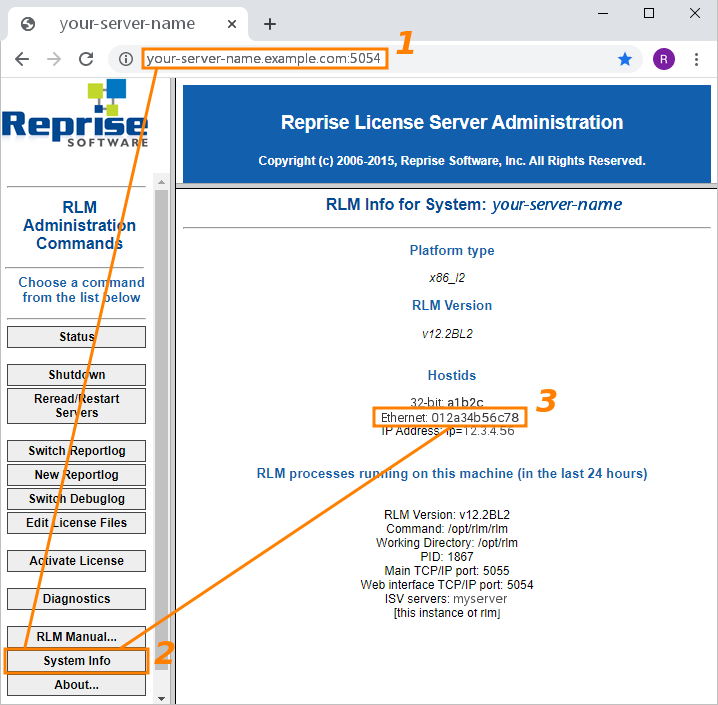

3.1. Query the RLM host ID via a Web Browser
A running RLM license server is required.
Go to
http://<your.license.server>:5054/Click on "System Info". Ethernet: xxxxxxxxxxxx displays the 12- or 8-digit RLM host ID.
3.1.1. Query the RLM host ID via the rlmutil.exe Utility on Windows
A running RLM license server is required.
If more than one Ethernet ID is listed, please provide all of them. Lauterbach typically uses the first RLM host ID shown.

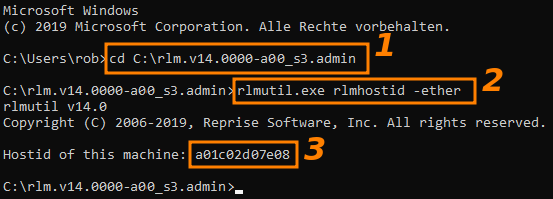

Open a command shell on your RLM License Server machine, and invoke the command
[/rlm_installation_path/]rlmutil.exe rlmhostid -etherThe result will appear as shown below:
3.1.2. Query the RLM host ID via the rlmutil Utility on Linux
If more than one Ethernet ID is listed, please provide all of them. Lauterbach typically uses the first RLM host ID shown.

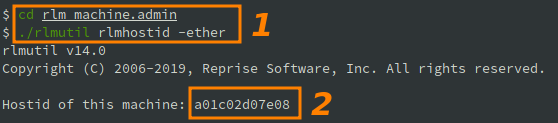

Open a command shell on your RLM License Server machine, and invoke the command
[/rlm_installation_path/]rlmutil rlmhostid -etherThe result will appear as shown below:
Documentation: How to Use TRACE32 Floating Licenses
