What is the difference between LA-2729 and LA-3770?

The LA-2729 and LA-3770 are both IDC20A-to-MIPI converters, but they differ in the signal assignment of the upper 10 pins of the MIPI-20 connector.

  • LA-2729: converts IDC20A to MIPI-10/20T

  • LA-3770: converts IDC20A to MIPI-10/20/34

Key differences:

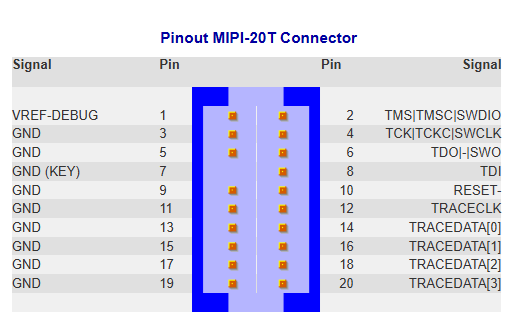

  • LA-2729 uses a MIPI-20T connector with the following pin mapping:

    • Pin 12 = TRACECLK

    • Pin 14 = TRACEDATA[0]

    • Pin 16 = TRACEDATA[1]

    • Pin 18 = TRACEDATA[2]

    • Pin 20 = TRACEDATA[3]

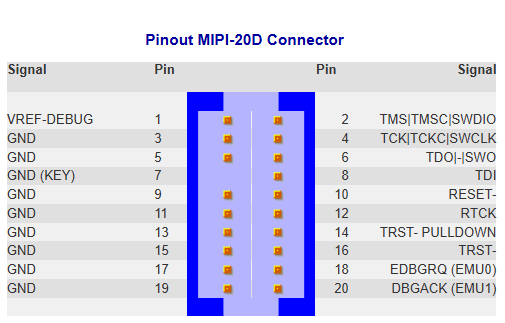

  • LA-3770 uses a MIPI-20D connector with the following pin mapping:

    • Pin 12 = RTCK

    • Pin 14 = TRST-PULLDOWN

    • Pin 16 = TRST-

    • Pin 18 = EDBGRQ (EMU0)

    • Pin 20 = DBGACK (EMU1)


Notes
  • Most evaluation boards use a MIPI-20T pinout.

  • LA-3770 can be reconfigured (solder bridges) for MIPI-20T.

For further details, refer to the Arm Debug and Trace Interface Specification.
