How can I display addresses in descending order in the DATA.dump window?

Authors list

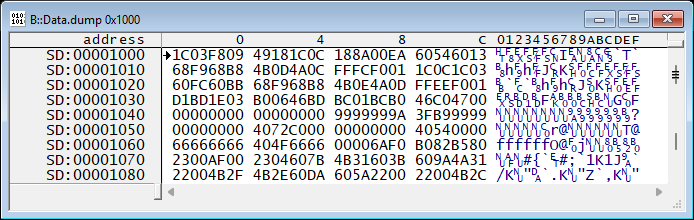

By default, the Data.dump window displays memory addresses in ascending order:

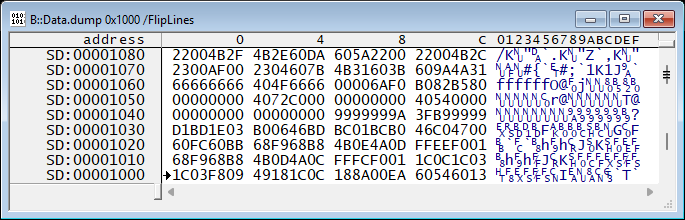

To display addresses in descending order instead, use the /FlipLines option of the Data.dump command, for example:

Data.dump 0x1000 /FlipLines

Displaying addresses in descending order is particularly useful when inspecting stack memory, as the display direction can be aligned with the stack growth direction.

Note

The /FlipLines option is supported starting with TRACE32 Release 02.2026.

For more information, refer to the documentation of the Data.dump command in the General Commands Reference Guide D
