There are mainly two methods to obtain CPI (clock cycles per instruction) or MIPS (Millions of Instructions Per Second) in TRACE32.

BenchMark Counters

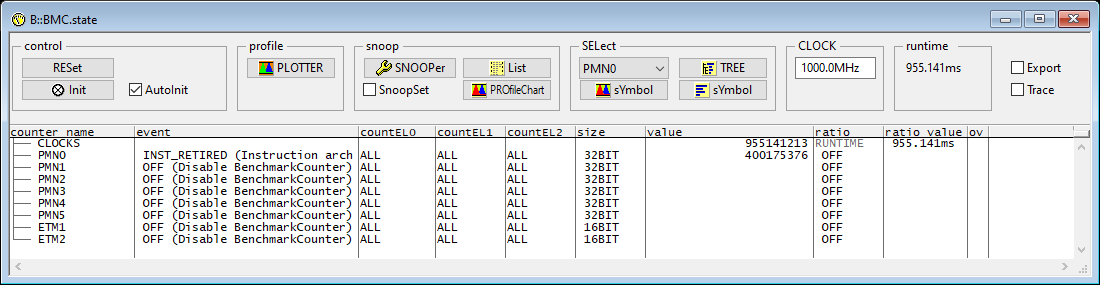

The first method is BMC (BenchMark Counters), which in the case of Arm processors correspond to the PMU (Performance Monitoring Unit). BMC is supported by the TRACE32 BMC.* command group. The results are directly obtained from the core counters, which makes BMC the recommended primary method for measuring CPI or MIPS.

In addition, BMC often provides counters for cache hits and misses, which may also be useful in the context of CPI analysis. To check whether BMC is supported for your processor architecture, refer to the Processor Architecture Manual for your target in main.pdf. Generic BMC commands are documented in the General Commands Reference Guide B.

BMC.state
BMC.AutoInit ON
BMC.CLOCK 1000MHz
BMC.PMN0.EVENT INST_RETIRED
BMC.PMN0.RATIO X/TIME
BMC.Init
Go
WAIT 1.s
Break

Using Trace-Based Measurments

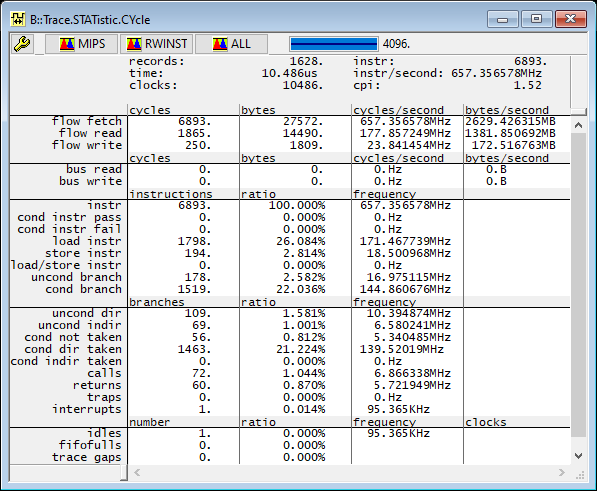

The second method is to use trace-based measurements to obtain CPI or MIPS values. This approach is mainly useful for metrics not covered by BMC counters. CPI can be statistically analyzed from trace data using commands such as Trace.STATistic.CYcle, which provides average clocks per instruction calculated from traced instructions and cycles.

Trace.STATistic.CYcle

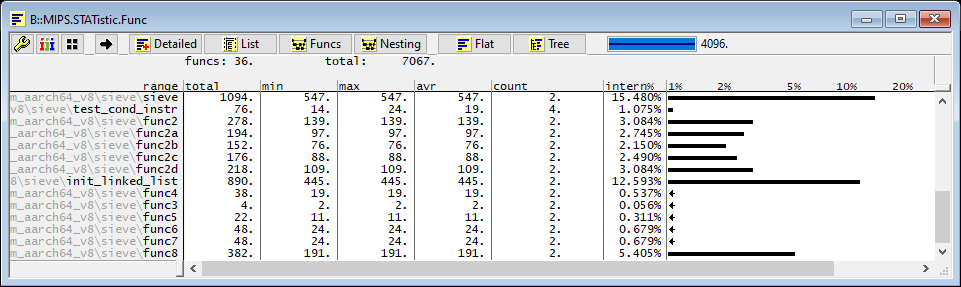

The MIPS.* commands can additionally be used to analyze the MIPS. The system can be analyzed under different aspects: workload per task, workload per high-level language line, workload per specified functional group etc. The following command displays for instance a numerical analysis per function.

MIPS.STATistic.Func

Refer for more information about the MIPS.* command group to the General Commands Reference Guide M.

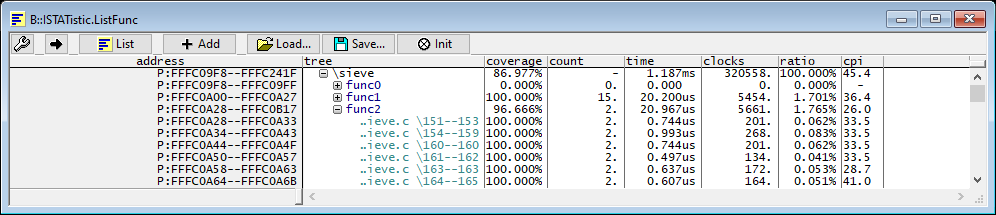

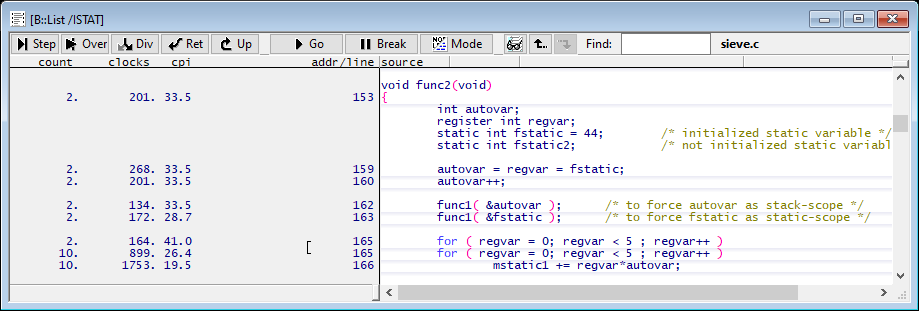

Moreover, you can use the ISTATistic.* command group to obtain detailed information for individual instructions when a program trace is available. However, it should be noted that for “high-end” cores this method may not provide cycle-accurate results for every single instruction.

Example:

ISTATistic.ADD
ISTATistic.ListFunc
List /ISTAT

Refer for more information about the ISTATistic.* command group to the General Commands Reference Guide I.
