For JTAG ports, the debugger sends three signals to the target chip for communication via JTAG:

• TCK : Clock signal, driven by the debugger.

• TMS : Signal driven by the debugger to control the JTAG TAP Controller.

• TDI : Signal driven by the debugger to send data into the target chip.

The debugger changes the value of the TMS and TDI signals coincident to the falling edge of TCK.

So the TMS and TDI signals have the following timing relative to TCK :

The target chip should sample the TMS and TDI signal on the rising edge of TCK.

For the target chip this means that the debugger will produce a setup (Tsetup) and hold time (Thold) of half the cycle time (Tclock) of TCK.

The target chip drives the signal. The value of the signal should change after the falling edge of TCK. The target chip has an implementation dependent clock to output timing (Tco).

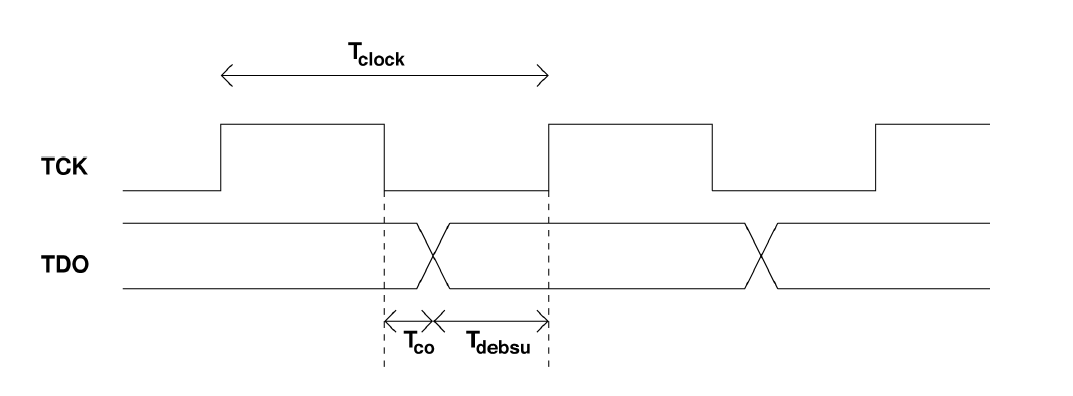

According to the JTAG specifications, the debugger should sample the TDO signal on the rising edge of TCK:

For the debugger this means the target chip will generate data on the TDO signal with a setup time of Tdebsu = Tclock/2 - Tco . The hold time of the data will be Tco + Tclock/2.

The debugger has the requirement that Tco + Tclock/2 > 0ns (hold time requirement) and Tdebsu > 7.5ns (setup time requirement).

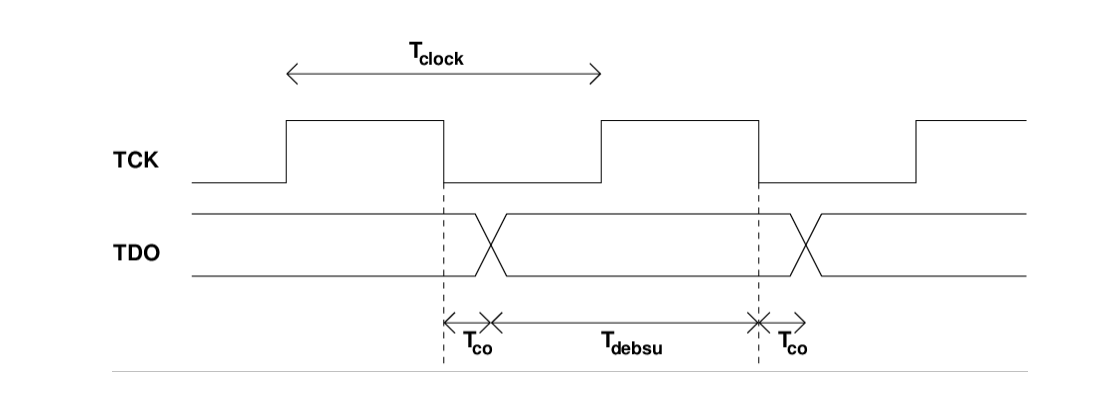

For some processor architectures, including Arm, the debugger samples the TDO signal on the falling edge of TCK. This allows to achieve higher TCK frequencies (which means lower Tclock values). In this case the following picture explains the timing:

So in this case the target generates a setup time for the debugger of Tdebsu = Tclock - Tco.

The debugger still has a 0 ns hold time requirement, so in this case it must hold that Tco > 0ns.

Summary:

Any setup/hold time requirements can be met by lowering the JTAG frequency. If you know which setup/hold time requirements for your chip, then you can deduct the maximum reachable JTAG frequency.
