Trace is often required for use cases such as function and task run-time analysis. Off-chip trace is generally the preferred approach for such use cases, as it provides detailed and reliable results without requiring any modification to the target application. When off-chip trace is not possible, for example due to limited processor or board capabilities, then on-chip trace can be an alternative. However, on-chip trace allows only very short recording times because of its limited on-chip trace buffer.

But what options remain if neither off-chip nor on-chip trace can be used? This article addresses that question by presenting and comparing alternative approaches for run-time analysis.

We begin with instrumentation-based trace, followed by sample-based profiling, highlighting the differences between the two methods.

Used Target Platform and TRACE32 Hardware:

All measurements in this article were performed on a NUCLEO-H563ZI development board featuring an Arm Cortex-M33F core running FreeRTOS, connected to a µTrace®. The approaches described are, however, generic and applicable to other processor architectures as well.

Instrumentation-based Trace

TRACE32 provides two primary features for instrumentation-based trace: LOGGER and FDX trace.

Both LOGGER and FDX are software-based trace methods that require modifications to the target application, which must be instrumented to write trace information into reserved memory. Consequently, sufficient spare RAM on the target system is essential.

LOGGER trace records trace information into a reserved RAM buffer during program execution. Once recording stops, TRACE32 retrieves the data from target memory for display and analysis. The recording length is limited by the buffer size. If the buffer becomes full, the application can either overwrite older entries (FIFO mode) or stop writing new data (Stack mode).

FDX trace, by contrast, streams trace information to the TRACE32 PowerView software on the host, typically via memory access during execution. The reserved buffer on the target acts as a temporary FIFO, enabling longer recording sessions. If the communication channel cannot transfer data quickly enough, the FDX target code stalls execution to prevent data loss.

To support these methods, Lauterbach provides dedicated source file sets for LOGGER and FDX trace, which must be integrated into the target application.

In the following, we conduct a test measurement for task run-time analysis, first using LOGGER and then FDX trace. The results are subsequently compared with those obtained from off-chip trace. In all three cases, the execution recorded is identical.

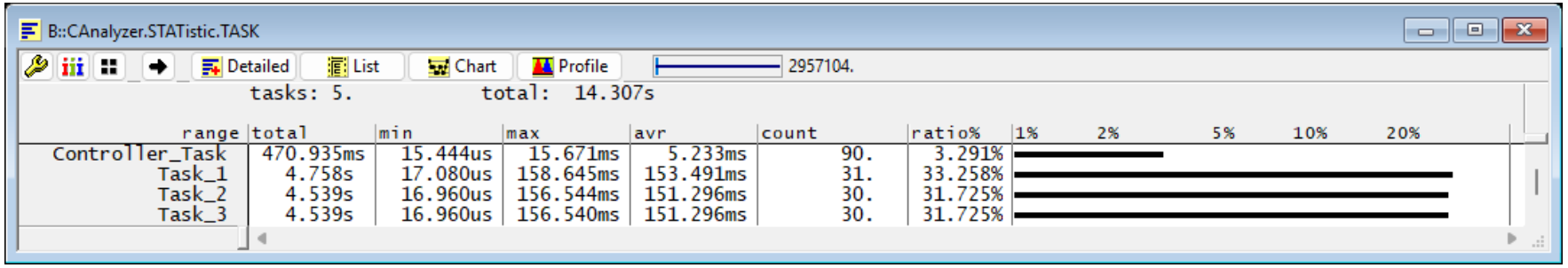

The off-chip trace results for the original, unmodified target application are presented below and serve as the reference baseline for the subsequent comparisons.

LOGGER Task Trace

For FreeRTOS, task-switch information can be captured with LOGGER by defining the macro traceTASK_SWITCHED_IN() in FreeRTOS.h:

#define traceTASK_SWITCHED_IN() T32_LoggerData (T32_DATA_WRITE|T32_LONG, (void *)&pxCurrentTCB, (unsigned long)pxCurrentTCB)

To obtain timing information when using LOGGER, the user must implement the T32_TimerGet function. In our case, we utilize the TIM2 counter of the STM32H563ZI:

uint64_t T32_TimerGet(void)
{
    return (*(volatile uint64_t *)0x50000024u);
}

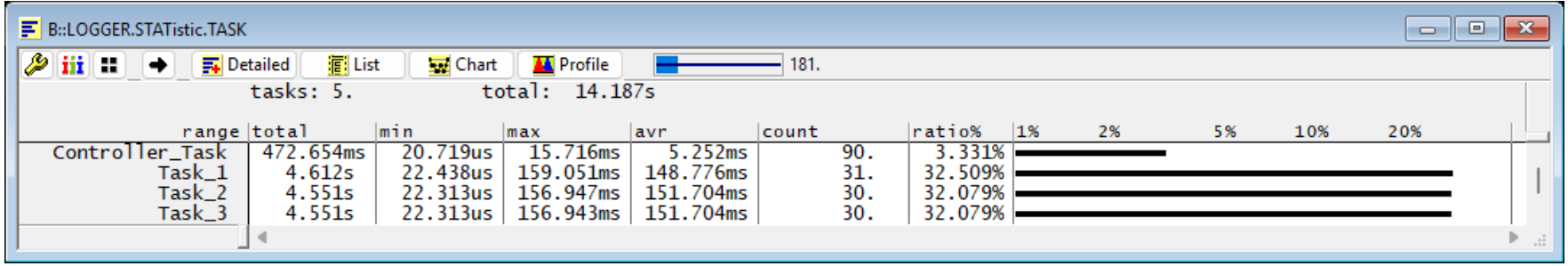

The following screenshot shows the task run-time results obtained with LOGGER trace.

By comparing the two results, we observe only minor deviations in the total, average, and maximum task run-times between LOGGER and off-chip trace. A more pronounced deviation appears in the minimum run-time values, as the logging overhead tends to mask very short execution times. The table below summarizes the differences for Controller_Task as an example.

LOGGER Function Trace

Task tracing with instrumentation-based methods is relatively straightforward, as it requires instrumentation at only a single code location. However, when tracing function runtimes, both the entry and exit points of each function must be instrumented. This inevitably introduces higher run-time and memory overheads compared to task-level tracing.

Example: Instrumentation of the function func_sin

static void func_sin()
{
	int x;
	T32_LoggerData (T32_FETCH, (void*)(((uint32_t)func_sin) & ~1U), 0 /* unused */);
	for (x = 0; x < 628; x++)
		sinewave[x] = int_sin(x)/(x/32+1);
	T32_LoggerData (T32_FETCH, NULL, 0 /* unused */);
}

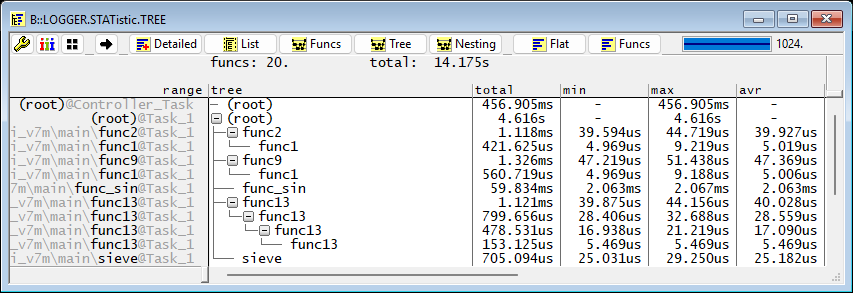

In the following example, we trace a set of selected functions. The results are displayed below in form of a function call tree

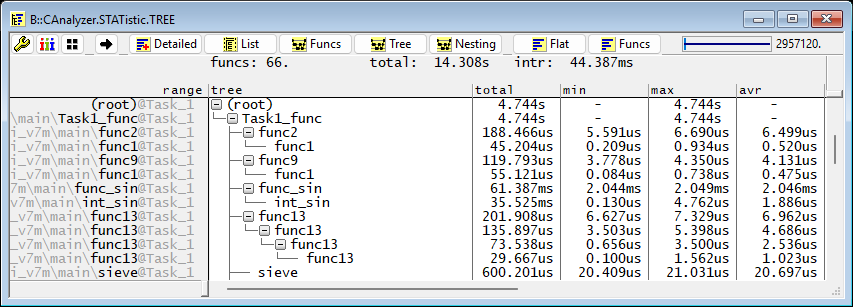

The next screenshot shows the runtime results of the non-instrumented code, obtained though off-chip trace

Two key observations can be made from the comparison:

• Functions such as func2 exhibit significantly higher execution times in LOGGER due to instrumentation overhead (maximum runtime: 44.718 µs with LOGGER versus only 6.690 µs with off‑chip trace). In practice, func2 calls the LOGGER function T32_LoggerData twice and invokes func1 three times. Each call to func1 in turn triggers T32_LoggerData twice, resulting in a total overhead of eight calls to T32_LoggerData. In our demo, a single execution of this function takes in average 4.3 µs .

• For functions with higher runtimes, such as func_sin, LOGGER produces results very close to off‑chip trace (maximum runtime: 2.067 ms with LOGGER versus 2.049 ms with off‑chip trace). This indicates that LOGGER is more suitable for tracing larger functions. The small deviation observed is partly due to the fact that int_sin, which is called multiple times by func_sin, is not instrumented.

• The LOGGER trace only includes functions explicitly instrumented in the code. Any function not tagged (e.g., int_sin) will be absent from the LOGGER call tree, while off-chip trace captures all executed functions. The runtimes of these functions are however included in the LOGGER results for caller functions.

FDX Task Trace

We now repeat the same task trace example, this time using FDX instead of LOGGER. As previously explained, the key advantage of FDX over LOGGER is its ability to achieve longer recording times by streaming trace information directly to the host during execution.

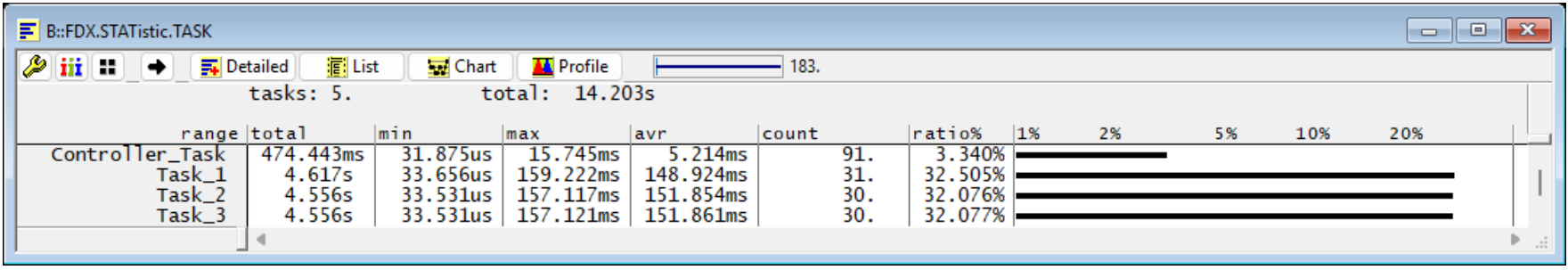

The corresponding results are shown below.

The observed results are similar to those obtained with LOGGER, with a larger deviation in the minimum run-times.

FDX Stalls

In addition to recording task switches, we now also capture write accesses to an array that is updated within a loop. This example illustrates the scenario in which the volume of generated trace data exceeds the available streaming bandwidth.

for (x = 0; x < 628; x++) {
    sinewave[x] = int_sin(x)/(x/32+1);
    T32_Fdx_TraceData (0x32, (void *)&sinewave[x], (unsigned long)sinewave[x]);
}

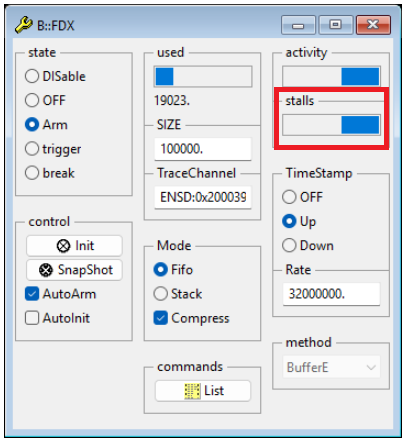

During recording, stalls can be observed in the FDX window, as shown below.

At certain times, the volume of generated trace information exceeds the capacity of the trace channel. Consequently, the FDX target code must wait until the channel becomes available. This behavior intentionally introduces stalls and affects the run-time performance of the target application in order to avoid trace data loss. The likelihood of stalls strongly depends on both the amount of trace data being exported and the characteristics of the target processor.

TRACE32 PowerView additionally provides the PRACTICE function FDX.TargetSTALLS() to monitor stalls from a script.

Sample-based Profiling

In some cases, instrumentation-based trace is not feasible; for example, when the target code cannot be modified. In such situations, the only available option to gain an overview of run-time behavior is sample-based profiling. TRACE32 supports this approach through its SNOOPer feature.

Sample-based profiling works by periodically collecting snapshots of the program counter and/or data values. For task tracing, this can be achieved by sampling the variable that stores the current task identifier. Because the trace relies on periodic sampling rather than continuous recording, the results are approximate and inherently include a statistical margin of error. Sample-based profiling is therefore useful for obtaining a broad overview of runtimes, but it is not suitable in scenarios where precise accuracy is required, such as verifying function or task run-time constraints. Moreover, the accuracy of sample‑based profiling strongly depends on the maximum achievable sampling frequency, which is determined by the target processor, as well as on whether sampling can be performed during run‑time or requires stopping program execution to collect samples.

We now test this by sampling tasks using the SNOOPer trace, again with exactly the same code execution as in the examples above.

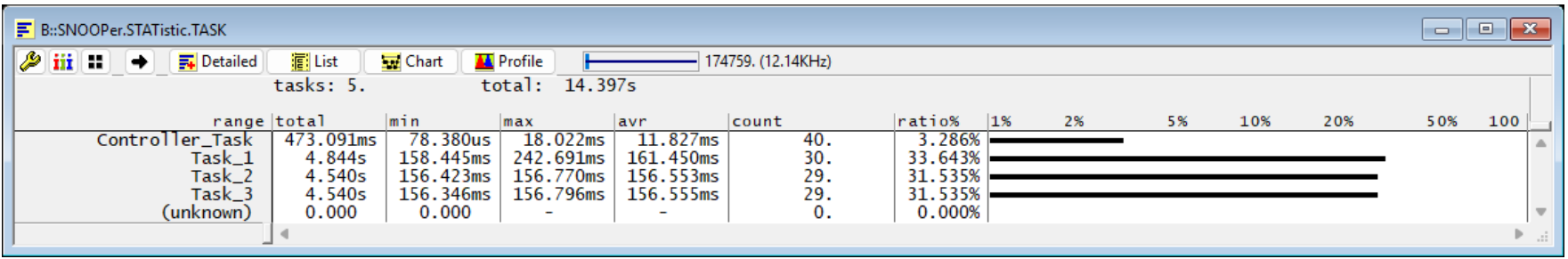

The results are displayed below.

While the total function run-times show only a relatively small deviation, the accuracy is noticeably lower. This reduced precision is particularly evident in the longer average and maximum values.

Summary

This article has compared several approaches for run-time analysis when off-chip or on-chip trace is not available:

• LOGGER trace provides good results for larger functions and tasks but is limited by buffer size and introduces overhead that distorts very short executions.

• FDX trace extends recording time by streaming data to the host, but stalls may occur if the trace channel is saturated.

• Sample-based profiling (SNOOPer) offers a lightweight alternative when instrumentation is not feasible, delivering a broad overview of runtimes but with reduced accuracy, especially for peak values.

• BenchMark Counters (BMC) can be used on some processors to measure run-times without instrumentation overhead.

In practice, the choice of method depends on the target system’s capabilities and the required level of accuracy. LOGGER and FDX are suitable when precise timing is essential, while sample-based profiling provides a useful fallback for high-level performance insights when instrumentation is not feasible.
